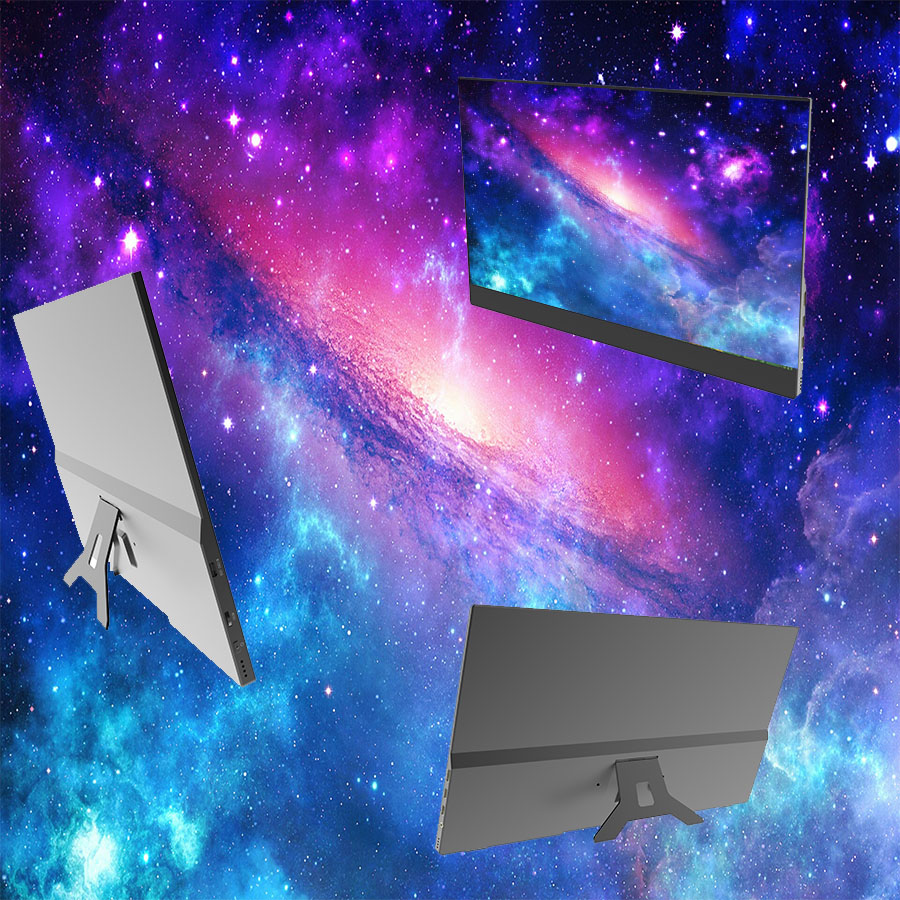

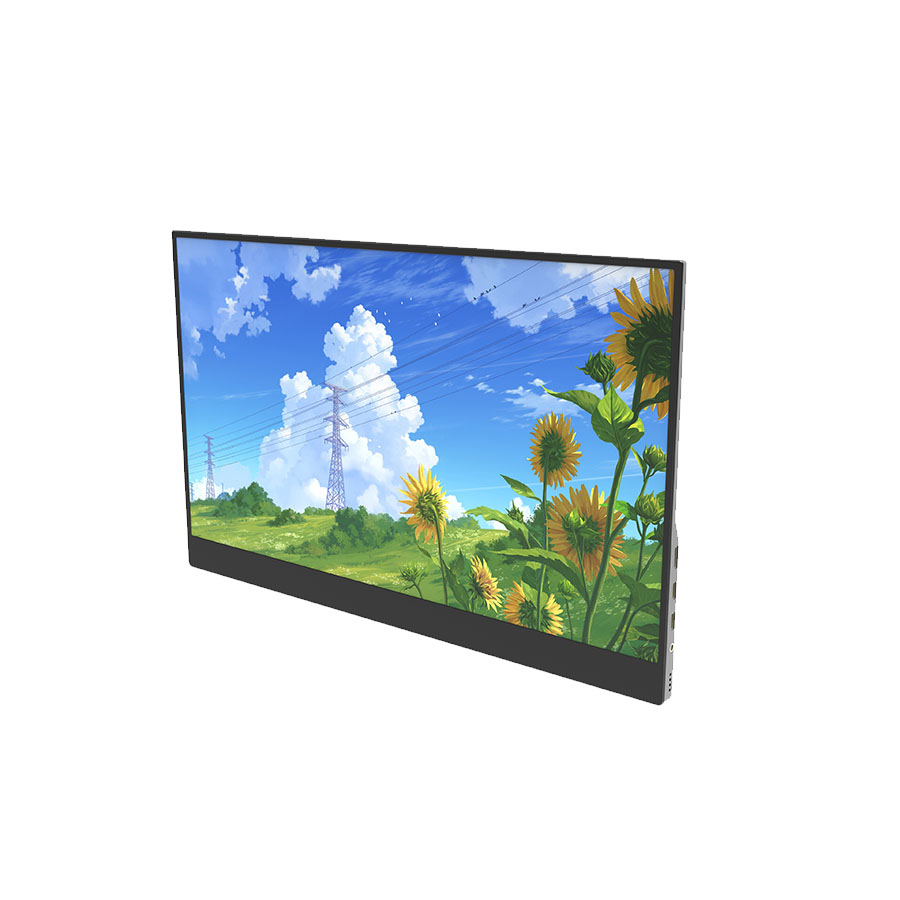

U1580A
Details and Specifications
LCD Panel
Display size
Brightness(Typical)
NTSC
Contrast(Typical)
Active Area(mm)
Pixel Pitch(mm)
Resolution (H x V)
Aspect Ratio
View Angles LR,UD(CR>10)
Display Colors
15.8"
220cd/m2 (Typ)
72%
800:1 (Typl)
349.632x196.668
0.1821(H)X0.1821(V)
1920 x 1080
16:9
H 170°/ V 170°
16.7M colors
PC Input Range
Vertical Freq.
Max. display frequency
(Resolution H*V/Fv)
58 to 62Hz
1920 x 1080 /60Hz
Rotate
G-SENSOR
Rotate Angles
NA
NA
Interface
Input 1
Input 2
Input 3
Input 4
TYPE-C x 2(Full-featured USB-C）
Mini HDMI(1.4) x 1
NA
NA
Output Terminal
Earphone
Speaker(Typic )
Earphone x 1
1W*2(8Ω)
Power
Consumption(Typical)
PD POWER
Power Mode
Indicator Light
On: ≤10W
Standby≤0.5W, Off≤0.5W
DC: 5V-3A/9V-3A/20V-1.5A
Power on : GREEN (LED)
Power saving : RED (LED)
Operating Condition
Temperature
Humidity
0℃ ～ 40℃
20% ~ 85%, non-condensing
Physical
Dimension(W*D*H)
Packing Dimension(W*D*H)
Net Weight
Gross Weight
Tilt
VESA Mounting
Swivel
Pivot
Kensington Lock
VESA Mounting
359.8 x 227.1 x 100mm
401 x 272 x 110mm
0.91kg
1.85kg
90∘~ 45∘, 0∘
NA
NA
NA
NA
NA
Controls
Front Control
On Screen Display
Color
Preset Mode
Menu, Bri (-), Vol(+) Auto/Enter, Power (Key)
Standard OSD format
9300,6500, User Mode
Standard,TXT, Movie, Game
TOUCH
Touch Screen
Multi touch
Touch Panel
NA
NA
NA
Accessory
Adapter
Type-c Cable
Mini HDMI-HDMI Cable
USBA-Type-c Cable
User Manual(Paper)
Sleeve
YES( DC: 5V-3A/9V-3A/20V-1.5A)
x 1（1.0M）
x 1（1.2M）
OPTION
YES
YES
Loading with pallet
40' Standard
20' Standard
3998
2398
Color Plan
Black
Carton Box
Standard
Certification
TBD
HDR
YES
OD function
YES
